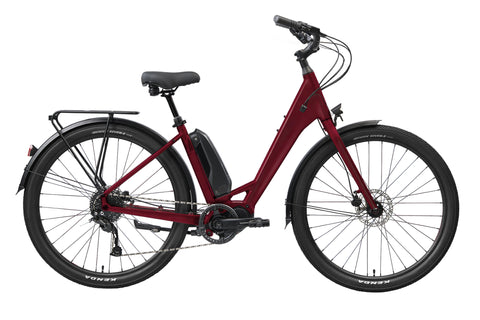

The Scene VLT is an ultra-versatile, but decidedly relaxed step-through electric hybrid that allows riders of all sorts to get around easily, replace the need for a car in the city and make even the hilliest rides anywhere else no sweat at all.
The Scene VLT makes even the hilliest rides no sweat at all.
The nearly silent Shimano STEPS drive system is integrated into its beautiful alloy e-bike frame with a low center of gravity, stress-free mounts and dismounts, and easy maneuverability.
REASONS IT'S RAD
| Category | Component | Specification |
|---|---|---|
| Frameset | Frame | Double Butted Alloy E-Bike Frame, Internal Cables |
| Fork | Aluminum w/ Light Mount, 12x100 TA, PS | |
| Drivetrain | Rear Shifter | Shimano CUES SL-U4000-9R, 9sp |
| Rear Derailleur | Shimano CUES RD-U4020, 9sp, SGS | |
| Crankset | Shimano FC-EM600, 38T, 165mm | |
| Cassette | Shimano CUES CS-LG300-9, 11-36T, 9sp | |
| Chain | KMC eGlide, 9sp | |
| Brakes | Front Brake | Tektro HD-M280 Auriga, 2-P, Resin Pads, Anti-Vibration |
| Front Brake Rotor | Tektro TR160-52, 160mm, 1.8mm Thickness, 6-bolt | |
| Rear Brake | Tektro HD-M280 Auriga, 2-P, Resin Pads, Anti-Vibration | |
| Rear Brake Rotor | Tektro TR160-52, 160mm, 1.8mm Thickness, 6-bolt | |
| Brake Levers | Tektro HD-M280 Auriga | |
| Components | Handlebar | Norco Scene Aluminum, 660mm, 60mm Rise, 30Ā° Backsweep |
| Stem | Norco Aluminum, 70mm (S/M) ā 80mm (M/L), 17Ā° Riser, 31.8 clamp | |
| Seatpost | TranzX YSP18PLQ, 31.6mm, 100mm | |
| Headset | Tapered 1-1/8"ā1.5" (ZS44/28.6 | ZS56/40) | |
| Saddle | Scene Comfort Saddle w/ Elastomer Suspension, 225mm W x 269mm L | |
| Grips | Dual Density Ergonomic Single Lock, 133mm Length | |
| Seatpost Clamp | Norco Alloy QR, 31.8mm ID | |
| Wheels | Front Hub | Formula DC-221T, 15x100mm TA, 32h, 6-bolt |
| Rear Hub | Formula DC-142, 12x142mm Boost, HG, 32h, 6-bolt | |
| Rims | Alloy DW Disc w/ 27mm ID, 32h | |
| Front Tire | Kenda Kwick Seven5, 27.5 x 2.2", 30 TPI, Wire | |
| Rear Tire | Kenda Kwick Seven5, 27.5 x 2.2", 30 TPI, Wire | |
| Spokes/Nipples | 13G Stainless Steel w/ Brass Nipples 2.0MM x 16MM - Black | |
| Electric Components | Drive Unit | Shimano DU-EP600, 85 N.m |
| Battery | Shimano BT-EN605, 504 Wh | |
| External Charging Adaptor | Shimano EC-E6002, 1.8A | |
| Display | Shimano SC-EN500, 22.2mm Clamp Band | |
| Additional Info | Sensor | Shimano EW-SS300 Sensor |
Ā
| Size | S | M | L |
|---|---|---|---|
| Wheel Size | 27.5" | 27.5" | 27.5" |
| Reach (mm) | 355 | 365 | 375 |
| Stack (mm) | 593 | 621 | 649 |
| HTA ā Head Tube Angle (Ā°) | 68 | 68 | 68 |
| OS ā Fork Offset (mm) | 50 | 50 | 50 |
| ST ā Seat Tube Length (mm) | 425 | 450 | 475 |
| STA ā Effective Seat Tube Angle (Ā°) | 68 | 68 | 68 |
| RC ā Rear Centre Length (mm) | 470 | 470 | 470 |
| BB ā Bottom Bracket Drop (mm) | 67 | 67 | 67 |
| BBH ā Bottom Bracket Height (mm) | 285 | 285 | 285 |
| HTT ā Horizontal Top Tube (mm) | 595 | 616 | 637 |
| WB ā Wheelbase (mm) | 1087 | 1108 | 1129 |
| SOH ā Standover (mm) | 415 | 415 | 415 |
| HT ā Head Tube Length (mm) | 170 | 200 | 230 |
| Trail (mm) | 88 | 88 | 88 |
| Recommended Seatpost Drop (mm) | 100 | 120 | 120 |
| Maximum Post Insertion (mm) | 250 | 300 | 300 |
| Stem Length (mm) | 70 | 70 | 70 |
| Crank Length (mm) | 170 | 170 | 170 |
| Tire Size | 2.0" ā 2.35" | 2.0" ā 2.35" | 2.0" ā 2.35" |
| Water Bottle Compatible | 1 Ć 750 mL | 1 Ć 750 mL | 1 Ć 750 mL |
