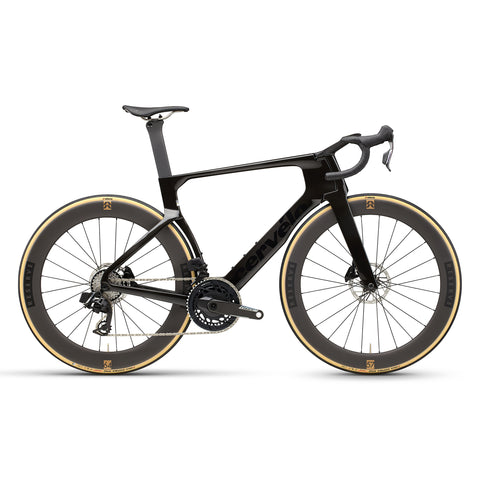

The S5 is a sport-wide benchmark for speed and aerodynamic efficiency—with the race results to back it up. From Wout van Aert winning the Green Jersey by the biggest margin of victory in modern history, to Simon Yates riding himself into the maglia rosa, S5’s iconic V-stem and bayonet fork are a fixture at the front of the professional peloton. The new S5 builds on that legacy of speed by getting even faster.
The new bike is over 6 Watts faster than its predecessor, 124 grams lighter, and retains the handling, poise, and stability that riders everywhere love. The biggest changes are at the front of the bike, where the most significant aerodynamic performance comes from. The fork legs and head tube got quite a bit deeper, and the all-new, one-piece handlebar/stem builds on the original V-stem concept—and gets even faster.
| Fork | Cervélo All-Carbon, Bayonet S5 Fork |
| Headset | FSA IS2 1-1/8, 36° x 45° / 1-3/8, 36° x 45° |
| Seatpost | Cervélo SP34 Carbon |
| Seatpost Sizing | 48–54: 0mm setback; 58–61: 15mm setback |
| Left Shifter/Brake | SRAM Force AXS E1 |
| Right Shifter/Brake | SRAM Force AXS E1 |
| Front Derailleur | SRAM Force AXS E1 |
| Rear Derailleur | SRAM Force AXS E1 |
| Brake Rotors | SRAM Paceline Centerlock |
| Front Thru Axle | Cervélo Aero Thru Axle Front, M12x1.5mm, 122mm |
| Rear Thru Axle | Cervélo Aero Thru Axle Rear, M12x1.0mm, 169mm |
| Bottom Bracket | SRAM DUB Ceramic, BBright |
| Crankset | SRAM Force AXS E1, 50/37T, DUB, with power meter |
| Crank Sizing | 48–51: 165mm; 54–56: 170mm; 58–61: 172.5mm |
| Cassette | SRAM Force E1, 10-33T, 12-Speed |
| Chain | SRAM Force E1 |
| 1-piece Handlebar/Stem | Cervélo HB19 Carbon |
| Handlebar Sizing | 48: 36cm; 51: 38cm; 54–61: 40cm |
| Stem Sizing | 48: 80mm; 51: 90mm; 54–56: 100mm; 58: 110mm; 61: 120mm |
| Saddle | Selle Italia NOVUS BOOST EVO SuperFlow Ti |
| Front Wheel | Reserve 57TA, DT Swiss 240, 12x100mm, 24H, centerlock, tubeless compatible |
| Rear Wheel | Reserve 64TA, DT Swiss 240, 12x142mm, XDR freehub, 24H, centerlock, tubeless compatible |
| Tire | Vittoria Corsa Pro TLR G2.0 700x29c |
| Max Tire Width | 34mm |
