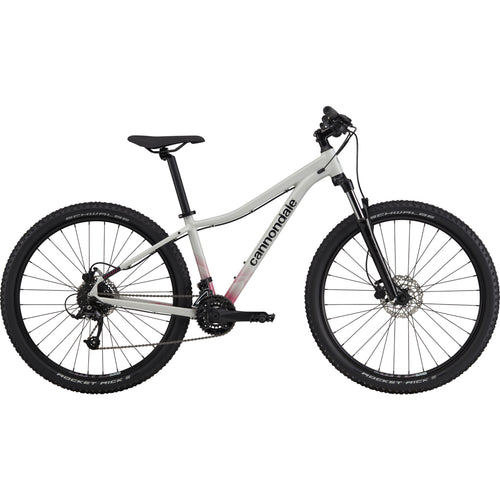

Level Up.
A mountain bike built to raise your game and ignite a passion for the trail. Designed for the mountains and ready for anything.
Where it thrives
Low-impact trails, gravel roads, leisurely ride
What it's built for
Handling, durability
Highlights
|
Fork |
SR Suntour XCT DS, 100mm, coil, 42mm offset (27.5") 46mm offset (29") |
|
Headset |
Semi-Integrated, 1-1/8" |
|
Rear Derailleur |
microSHIFT M36L |
|
Front Derailleur |
microSHIFT Dual Pull Compact, Band Clamp |
|
Shifters |
microSHIFT, 8-speed |
|
Chain |
KMC Z8.1, 8-speed |
|
Crank |
Prowheel, 36/22 |
|
Rear Cogs |
Sunrace, 11-34, 8-speed |
|
Bottom Bracket |
Sealed cartridge bearing, square taper |
|
Brakes |
Tektro M275 hydraulic disc, 160/160mm rotors |
|
Brake Levers |
Tektro hydraulic disc |
|
Front Hub |
Shimano HBTX 505 |
|
Rear Hub |
Shimano FH-TX505 |
|
Brake Type |
Disc |
|
Rims |
WTB SX19, 32h |
|
Spokes |
Stainless Steel, 14g |
|
Tire Size |
2.25 |
|
Wheel Size |
29 |
|
Tires |
WTB Ranger Comp, 29x2.25" (27.5x2.25" - XS, SM), DNA Compound |
|
Front Tire |
WTB Ranger Comp, 29x2.25" (27.5x2.25" - XS, SM), DNA Compound |
|
Rear Tire |
WTB Ranger Comp, 29x2.25" (27.5x2.25" - XS, SM), DNA Compound |
|
Handlebar |
6061 Alloy Riser, 31.8mm, 25mm rise, 700mm |
|
Stem |
6061 Alloy, 31.8, 8° |
|
Grips |
Cannondale Dual-Density |
|
Saddle |
Cannondale Stage 2 Women's |
|
Seatpost |
Cannondale 3, 6061 Alloy, 31.6x350mm (XS - SM), 400mm (MD-LG) |
|
Weight |
This information isn't available yet. We will update the weight of this model as soon as possible. |
|
Notes |
We make every effort to ensure accuracy, but reserve the right to update specifications & prices without notification. |
| Bike Size | X-Small | Small | Medium | Large | X-Large |
|---|---|---|---|---|---|
| Seat Tube Length (cm) | 33 | 38.1 | 43.2 | 47 | 53.3 |
| Top Tube Horizontal (cm) | 53.5 | 57.7 | 60.9 | 63.4 | 65.9 |
| Top Tube Actual (cm) | - | - | - | - | |
| Head Tube Angle | 68.0° | 68.0° | 68.0° | 68.0° | 68.0° |
| Seat Tube Angle | 73.5° | 73.5° | 73.5° | 73.5° | 73.5° |
| Standover (cm) | 67.3 | 71 | 76.8 | 79.5 | 83.9 |
| Head Tube Length (cm) | 9.5 | 9.5 | 10.5 | 11.5 | 12.5 |
| Wheelbase (cm) | 105.4 | 109.8 | 114 | 116.6 | 119.2 |
| Front Center (cm) | 62.1 | 66.5 | 70.2 | 72.8 | 75.4 |
| Chain Stay Length (cm) | 44 | 44 | 44.5 | 44.5 | 44.5 |
| Bottom Bracket Drop (cm) | 6 | 6 | 6.5 | 6.5 | 6.5 |
| Bottom Bracket Height (cm) | 29.3 | 29.3 | 30.7 | 30.7 | 30.7 |
| Fork Rake (cm) | 4.2 | 4.2 | 4.6 | 4.6 | 4.6 |
| Trail (cm) | 9.7 | 9.7 | 10.1 | 10.1 | 10.1 |
| Stack (cm) | 57.3 | 59.1 | 63.2 | 63.2 | 64.1 |
| Reach (cm) | 36.5 | 40.2 | 44.7 | 44.7 | 46.9 |
| Bike Size | Rider Height (in) |
|---|---|
| X-Small | 4'6" - 5'2" |
| Small | 5'1" - 5'4" |
| Medium | 5'3" - 5'8" |
| Large | 5'7" - 6'0" |
