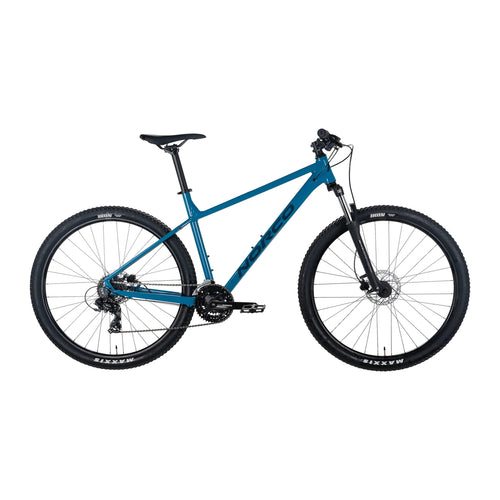

The Storm 4 features a progressive off-road design and features that’ll help you discover your favourite way to ride.
The Storm 4 opens up the world of off-road adventure.
It’s built for off-road adventure, but the 6061 aluminum Storm 4 is more than happy to lead a double life on city streets and park paths.
REASONS IT'S RAD
|
FRAME |
6061 Alloy, Internal Routing, Smooth Welds |
|
FORK |
Suntour XCE28 100mm, 42mm Offset (27.5), 46mm Offset (29) |
|
REAR SHIFTER |
Shimano Altus SL-M315 |
|
REAR DERAILLEUR |
Shimano Tourney RD-TY500 |
|
FRONT SHIFTER |
Shimano Altus SL-M315 |
|
FRONT DERAILLEUR |
Shimano Tourney FD-TY500 |
|
CRANKSET |
Shimano TY301, 42/34/24T, 170mm (XXS, XS, S), 175mm (M, L, XL) |
|
BOTTOM BRACKET |
Cartridge, BSA Threaded |
|
CASSETTE |
CS-M3007, 11-34T, 7 Speed |
|
CHAIN |
KMC Z7 |
|
FRONT BRAKE |
Tektro HD-M275 Hydraulic, Resin Pads |
|
FRONT BRAKE ROTOR |
160mm |
|
REAR BRAKE |
Tektro HD-M275 Hydraulic, Resin Pads |
|
REAR BRAKE ROTOR |
160mm |
|
BRAKE LEVERS |
Tektro HD-M275, HD-M276 Short Reach on Step-Thru |
|
HANDLEBAR |
X6 Alloy, 720mm (XXS, XS, S), 740mm (M, L, XL), 25mm Rise |
|
STEM |
Alloy 60mm, 31.8mm Clamp |
|
SEATPOST |
Alloy 31.6mm |
|
HEADSET |
Zero Stack |
|
SADDLE |
Norco XC |
|
GRIPS |
Norco |
|
PEDALS |
VP Nylon Flat |
|
FRONT HUB |
Alloy QR, 9x100mm QR, 6 Bolt |
|
REAR HUB |
Alloy QR, 10x135mm QR, HG, 6 Bolt |
|
RIMS |
WTB SX19 |
|
FRONT TIRE |
WTB Starflight 2.25" |
|
REAR TIRE |
WTB Starflight 2.25" |
|
SPOKES/NIPPLES |
Stainless Black |
|
RIM TAPE |
Nylon+PVC rim tape |
| XL | L | M | S | XS | XXS | |||
|---|---|---|---|---|---|---|---|---|
| Wheel Size | 29" | 29" | 29" | 27.5" | 27.5" | 27.5" | ||
| Travel (mm front) |
100
|
|||||||
| Reach | 485 | 455 | 425 |
395
|
365 | 335 | ||
| Stack | 643 | 633 | 624 |
611
|
602 | 592 | ||
| HTA | Head Tube Angle |
68.5
|
68
|
|||||
| OS | Fork Offset |
51
|
42
|
|||||
| ST | Seat Tube Length | 550 |
470
|
430 | 392 | 340 | ||
| STA | Effective Seat Tube Angle |
75
|
||||||
| RC | Rear Centre Length |
450
|
435
|
|||||
| BB | Bottom Bracket Drop |
63
|
49
|
|||||
| BBH | Bottom Bracket Height |
310
|
305
|
|||||
| HTT | Horizontal Top Tube | 657 |
592
|
559 | 526 | 494 | ||
| WB | Wheelbase | 1214 |
1146
|
1100 | 1066 | 1032 | ||
| SOH | Standover | 754 |
686
|
632 | 616 | 588 | ||
| HT | Head Tube Length | 125 |
105
|
125 | 115 | 105 | ||
| Trail |
92
|
98
|
||||||
| Maximum Post Insertion | 300 |
240
|
300 | 280 | 250 | |||
| Stem Length |
60
|
|||||||
| Crank Length |
175
|
170
|
||||||
| Tire Size |
2.0" - 2.35"
|
2.0"-2.35" | 2.0" – 2.35" | |||||
| Water Bottle Compatible | 2 x 750 mL | 2 x 750 ml |
2 x 750 mL
|
1 x 750 mL | 1 x 750 ml | 1x 750ml | ||
