Online Orders: This bicycle needs to be assembled by a qualified technician.

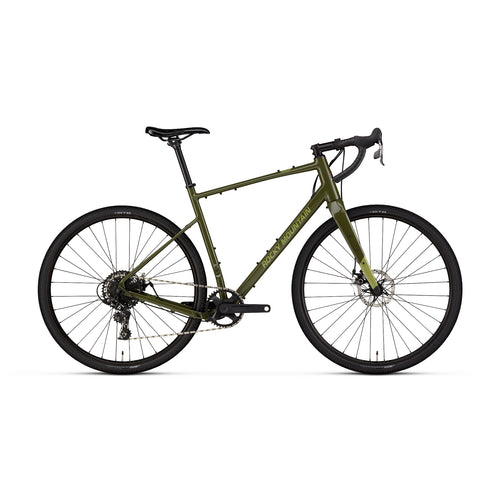

Designed to make every ride an adventure, the Solo is the perfect tool to escape, log some miles, and make multi-day rides a blast.
The Solo doesn’t stop when the pavement ends.
The open (gravel) road. When nothing stands between you and the horizon. It doesn’t matter if you're chasing mountains or vast open plains, there’s something hypnotic about the call of gravel less traveled. Make every ride an adventure.
Experience the outdoors with the Solo 30! Our aluminum frame provides stability and endurance for your ride, so you can explore with confidence. Conquer the trails and take in the sights with solo 30 - perfect for the adventure-seeking cyclist.
|
Frame |
Rocky Mountain Butted 6061 SL Series Alloy | BB386 EVO | 12x142mm Axle | Flat Mount Disc | 700x40c & 650bx2.2 Compatible | Dropper Post Compatible | Fender Mounts Rear Triangle |
|
Fork |
Rocky Mountain Carbon Gravel | Full Carbon Steerer |100 x 12mm Axle |3 Pack & Fender Mounts |
|
Headset |
Rocky Mountain | Sealed 36°x45° Bearings | 30.2mm x 41mm x 7.1mm Upper | 40mm x 51.8mm x 7.5mm Lower | 1.5" Crown Race |
|
Stem |
Rocky Mountain 31.8 XC | 7° Rise | XS = 60mm | SM = 70mm | MD = 80mm |LG = 90mm | XL = 100mm |
|
Handlebar |
Rocky Mountain | Reach 70mm | Drop 120mm | Flare 18° | Width: 420mm XS | 440mm SM-MD | 460mm LG-XL |
|
Grips |
Rocky Mountain Gel Bar Tape |
|
Brakes |
TRP Spyre | Resin Pads | F:TRP 160mm | R:TRP 160mm |
|
Shifters |
Sram Apex |
|
Rear Derailleur |
Sram Apex 1 |
|
Cranks & Chainring |
FSA Omega AGX+ | 40T |19mm Spindle | XS-SM = 170mm | MD = 172.5mm Crank Length | LG-XL = 175mm Crank Length |
|
Bottom Bracket |
FSA BB386 |
|
Cassette |
Sram PG-1130 11-42T |
|
Chain |
KMC X11-1 |
|
Front Hub |
Shimano Tiagra | 12x100mm |
|
Rear Hub |
Shimano Tiagra | 12x142mm |
|
Spokes |
2.0 Stainless |
|
Rims |
WTB ST i23 TCS Tubeless | 32H | Tubeless Ready - Tape / Valves Incl |
|
Tires |
F: Kenda Piedmont 700 x 40 // R: Kenda Piedmont 700 x 40 |
|
Seatpost |
Rocky Mountain 27.2mm |
|
Saddle |
WTB Volt 142 |
| XS | SM | MD | LG | XL | |
| Top Tube Horizontal (mm) | 520 | 540 | 560 | 580 | 605 |
| Head Tube Angle (deg) | 70 | 70.5 | 71 | 71.5 | 71.5 |
| Head Tube Length (mm) | 100 | 130 | 150 | 185 | 210 |
| Seat Tube Angle (deg) | 75 | 74.5 | 74 | 73.5 | 73 |
| Seat Tube Length (mm) | 414 | 452 | 490 | 528 | 566 |
| Rear Centre (mm) | 425 | 425 | 425 | 425 | 425 |
| Bottom Bracket Drop (mm) | 78 | 77 | 75 | 75 | 75 |
| Reach (mm) | 375.8 | 382.66 | 391.9 | 395.9 | 407.7 |
| Stack (mm) | 538.2 | 567.4 | 586.2 | 621.4 | 645.1 |
| Standover Height (mm) | 754 | 787 | 814 | 850 | 877 |
| Wheelbase (mm) | 1021 | 1034 | 1045 | 1056 | 1076 |
|
Standover height is measured 200 mm in front of the bottom bracket. |
|||||
