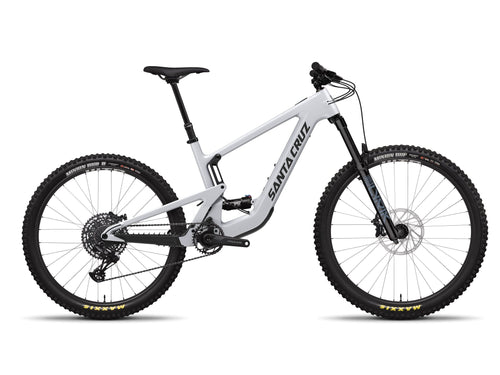

Santa Cruz - Heckler SL R MX C
Santa Cruz - Heckler SL R MX C - Image 2
Santa Cruz - Heckler SL R MX C - Image 3
Santa Cruz - Heckler SL R MX C - Image 4
Santa Cruz - Heckler SL R MX C - Image 5
Santa Cruz - Heckler SL R MX C - Image 6
Santa Cruz - Heckler SL R MX C - Image 7
Santa Cruz

Heckler SL R MX C

Color
Size
Regular price

$9,499.99

Heckler SL R MX C

Regular price

$9,499.99

Free Shipping on bikes over $1000

Leave us an order note in your cart with your preferred pickup location, and we'll arrange to have it shipped there for you.

MSG Availability

Description

Fast, light or powerful - choose all three

A sneaky ebike that's lightweight, powerful and has surprising range. All the on-trail traits of a Santa Cruz combined with the FAZUA RIDE 60 drive unit. 150mm of legendary VPP™ suspension, mixed wheels, and progressive geometry makes the Heckler SL a natural handling trail bike. Just with the added power of an ebike.

Available in: C & CC Carbon
Wheel Size: MX
Front Travel: 160mm
Rear Travel: 150mm
Drive Unit: FAZUA RIDE 60
Battery Size: 430 Wh



Specs

  • Material: Carbon C

    • Carbon frames use proprietary processes of the highest spec CC Carbon frames.
    • Matches legendary strength and stiffness standards.
    • Different grade of carbon material results in minimal weight gain.
  • Travel: 150mm

  • Wheel Size: MX

  • Rear Shock:

    • FOX Float Performance, 210x55
    • or Fox Float DPS Performance, 210x55
  • Fork: RockShox Lyrik Base, 160mm

  • Rear Derailleur: SRAM NX Eagle, 12spd

  • Right Shifter: SRAM NX

  • Cassette: SRAM PG1230, 12spd, 11-50t

  • Chain: SRAM NX Eagle, 12spd

  • Chainguide: OneUp Chainguide

  • Headset:

    • FSA IS-2/47/42 ACB
    • or Cane Creek 10 IS Integrated
  • Rear Tire: Maxxis Minion DHR II 27.5"x2.4", 3C MaxxTerra, EXO+

  • Front Tire: Maxxis Minion DHF 29"x2.5"WT, 3C MaxxGrip, EXO+

  • Front Hub: SRAM MTH 716, 15x110, Torque Cap, 6-Bolt 32h

  • Front Rim: WTB ST i30 TCS 2.0 29"

  • Rear Hub: SRAM MTH 746, 12x148, HG, 6-Bolt, 32h

  • Rear Rim: WTB ST i30 TCS 2.0 27.5"

  • Front Rotor: Avid Centerline, 200mm

  • Rear Rotor: Avid Centerline, 200mm

  • Brakes: SRAM DB8

  • Crankset: Praxis eTor AL, 104BCD, 165mm

  • Handlebars: e.13 TRS Base

  • Stem: e.13 Base

  • Saddle: WTB Silverado Medium, CroMo

  • Seatpost: SDG Tellis Dropper, 31.6

  • Grips: Santa Cruz Bicycles House Grips or Burgtec Bartender Pro Grip Minnar

  • Battery: FAZUA 430 Wh Integrated Battery

  • Drive Unit: FAZUA RIDE60

    • Extremely light, powerful, compact, and nearly silent.
    • Produces 60 Nm of torque power.
    • Capable of up to 450W, stronger than other "mid-power" or "lightweight" systems.
  • Battery Charger: FAZUA Charger

Frame Specs

Heckler SL Frame Specifications

Wheel Size

MX
Max Tire 2.6"
Fork Travel 160mm
Fork Axle-to-Crown 571mm
Fork Offset 44mm
Rear Spacing 148mm
UDH Compatible Yes
Front Derailleur No
Headset IS 41 / IS52
Bottom Bracket Fazua DU w/ E-TOR spindle
Max Chainring 36t
Brake PM 200mm
Max Rotor 220mm
Shock Dimensions 210x55



Geometry

S M L XL XXL
Reach | hi/lo 435/432.4 460/457.4 480/477.5 500/497.4 525/522.5
Stack 614.9/616.8 624/625.8 633/634.9 651/653 664.5/666.5
Head Tube Angle 64.3/64 64.3/64 64.3/64 64.3/64 64.3/64
Seat Tube Length 380/380 405/405 430/430 460/460 500/500
Front Center 766.1/765.9 795.4/795.3 819.7/819.6 848.4/848.3 879.9/879.8
BB Height 344/340.7 344/340.7 344/340.7 344/340.7 344/340.7
BB Drop (front) 28.5/31.8 28.5/31.8 28.5/31.8 28.5/31.8 28.5/31.8
BB Drop (rear) 9.9/13.3 9.9/13.3 9.9/13.3 9.9/13.3 9.9/13.3
Wheelbase 1209.1/1209.7 1238.4/1239.1 1262.7/1263.4 1294.4/1295.1 1329.9/1330.5
Rear Center 443/443.8 443/443.8 443/443.8 446/446.8 450/450.7
Head Tube Length 100 110 120 140 155
Top Tube Length 569.2/579.6 602.7/602.9 620.6/621.5 641.8/642.7 669.1/670
Seat Tube Angle 76.8/76.6 77.1/76.9 77.5/77.2 77.7/77.5 77.8/77.5
Standover Height 720.1/716.2 733/728.8 733.4/729.3 731.7/731.6 741/738.6
