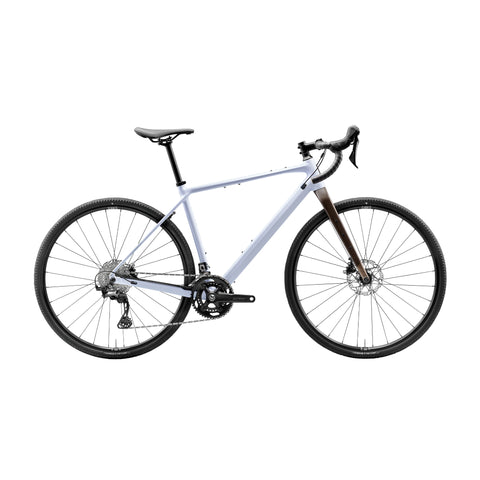

A progressive, modern gravel bike.
Search A GRX features new-school gravel geo fit for a fast, lively, confident ride on any terrain. With a taller headtube, slacker head angle, and longer reach, it’s more stable on rough terrain and ready to tackle steeper grades with ease. The updated, longer fork adds stability and new-school geometry is compatible with suspension forks if you want to add some extra cushion. The frame is UDH compatible and supports fitments for all the latest wide range 1x drivetrain technologies.
| Component | Specification |
|---|---|
| Frame | Search Butted Aluminum w/ Smooth Welds |
| Fork | Search Carbon, 51mm Offset, 12x100mm TA |
| Rear Shifter | Shimano GRX ST610, 12sp |
| Rear Derailleur | Shimano GRX GS RD-RX820, 12sp |
| Front Shifter | Shimano GRX ST610, 2x |
| Front Derailleur | Shimano GRX FD-RX820, Braze On, Down Swing |
| Crankset | Shimano GRX FC-RX610, 46-30T, 47CL – 165mm (S1,S2), 170mm (S3,S4), 172.5mm (S5) |
| Bottom Bracket | Shimano SM-BBR60, 68mm BSA |
| Cassette | Shimano CS-HG710, 11-36T, 12sp |
| Chain | KMC X12 |
| Front Brake | Shimano BR-RX400, Resin w/o Fin |
| Front Rotor | Shimano SM-RT64, 160mm, C-lock |
| Rear Brake | Shimano BR-RX400, Resin w/o Fin |
| Rear Rotor | Shimano SM-RT64, 160mm, C-lock |
| Brake Levers | Shimano GRX ST610 |
| Handlebar | Norco Super Flare Aluminum Compact – 40cm (S1,S2), 42cm (S3), 44cm (S4), 46cm (S5), 16° flare |
| Stem | Norco SL Alloy, 70mm, 31.8mm Clamp |
| Seatpost | Norco Alloy, 27.2mm, 12° Offset, 300mm |
| Headset | FSA Integrated Sealed Bearings No. 42 – Tapered 1-1/8"–1.5" (IS42/28.6 |
| Saddle | Selle Royale SRX Gravel, 148mm |
| Grips | Griptacular Shockproof Tape 3mm |
| Seatpost Clamp | Norco Aluminum, 31.8mm ID |
| Front Hub | Shimano HB-TC500 Sealed Bearing, 12x100mm, 28H, C-lock |
| Rear Hub | Shimano FH-TC500 Sealed Bearing, 12x142mm, HG, 28H, C-lock |
| Rims | WTB ST i25 2.0, 28h, 25mm ID |
| Tires | Schwalbe G-One All Round, Race Guard, 700x40c (Front & Rear) |
| Spokes/Nipples | Sapim Leader 2.0mm, Black w/ Black Brass Nipples |
| Valves | WTB TCS Tubeless Valve, Brass |
| Sealant | WTB TCS Tubeless Tire Sealant, 8oz / 236ml |
| Rim Tape | WTB TCS 2.0 Solid Strip |
| Weight | 10.6 kg (23 lbs 8 oz) |
| Weight Size | S3 |
