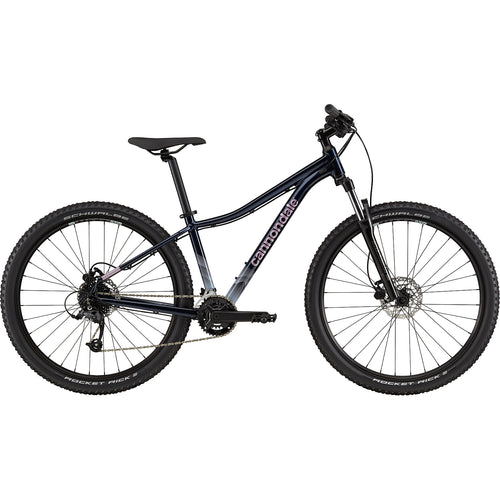

Level Up.
A mountain bike built to raise your game and ignite a passion for the trail. Designed for the mountains and ready for anything.
Where it thrives
Low-impact trails, gravel roads, leisurely ride
What it's built for
Handling, durability
Highlights
- Light and durable SmartForm C3 Alloy frame
- SR Suntour M3030 suspension fork, 75mm travel
- 7-speed drivetrain w/ double chainring cranks / Tektro mechanical disc brakes
|
Frame |
SmartForm C3 Alloy, SAVE, 1-1/8" headtube, post mount disc, StraightShot internal cable routing, dropper post compatible, BSA-73 |
|
Fork |
SR Suntour M3030, 75mm, coil, 42mm offset (27.5") 46mm offset (29") |
|
Rear Shock |
Null |
|
Rims |
WTB SX19, 32h |
|
Hubs |
(F) Formula, QR / (R) Formula QR |
|
Spokes |
Stainless Steel, 14g |
|
Tires |
WTB Ranger Comp, 29x2.25" (27.5x2.25" - XS, SM), DNA Compound |
|
Pedals |
Cannondale Platform |
|
Crank |
Prowheel, 36/22 |
|
Bottom Bracket |
Sealed bearing cartridge, square taper |
|
Chain |
KMC Z7, 7-speed |
|
Rear Cogs |
Sunrace, 11-34, 7-speed |
|
Front Derailleur |
microSHIFT Dual Pull Compact, Band Clamp |
|
Rear Derailleur |
microSHIFT M26L |
|
Shifters |
microSHIFT, 7-speed |
|
Handlebar |
6061 Alloy Riser, 31.8mm, 25mm rise, 700mm |
|
Grips |
Cannondale Dual-Density |
|
Stem |
6061 Alloy, 31.8, 8° |
|
Headset |
Semi-Integrated, 1-1/8" |
|
E-Bike Charger |
Null |
|
Brakes |
Tektro cable-actuated disc, 160/160mm rotors |
|
Saddle |
Cannondale Stage 2 Women's |
|
Seatpost |
Cannondale 3, 6061 Alloy, 31.6 x 350mm (XS - SM), 400mm (MD-LG) |
|
Sizes |
XS, SM, MD, LG |
Geometry
| Bike Size | X-Small | Small | Medium | Large | X-Large |
|---|---|---|---|---|---|
| Seat Tube Length (cm) | 33 | 38.1 | 43.2 | 47 | 53.3 |
| Top Tube Horizontal (cm) | 53.4 | 57.7 | 60.9 | 63.4 | 65.9 |
| Top Tube Actual (cm) | - | - | - | - | - |
| Head Tube Angle | 68.0° | 68.0° | 68.0° | 68.0° | 68.0° |
| Seat Tube Angle | 73.5° | 73.5° | 73.5° | 73.5° | 73.5° |
| Standover (cm) | 67.3 | 71 | 76.8 | 79.5 | 83.9 |
| Head Tube Length (cm) | 9.5 | 9.5 | 10.5 | 11.5 | 12.5 |
| Wheelbase (cm) | 105.4 | 109.8 | 114 | 116.6 | 119.2 |
| Front Center (cm) | 62.1 | 66.5 | 70.2 | 72.8 | 75.4 |
| Chain Stay Length (cm) | 44 | 44 | 44.5 | 44.5 | 44.5 |
| Bottom Bracket Drop (cm) | 6 | 6 | 6.5 | 6.5 | 6.5 |
| Bottom Bracket Height (cm) | 29.3 | 29.3 | 30.7 | 30.7 | 30.7 |
| Fork Rake (cm) | 4.2 | 4.2 | 4.2 | 4.6 | 4.6 |
| Trail (cm) | 9.7 | 9.7 | 10.1 | 10.1 | 10.1 |
| Stack (cm) | 57.3 | 59.1 | 62.3 | 63.2 | 64.1 |
| Reach (cm) | 36.5 | 40.2 | 42.5 | 44.7 | 46.9 |
