Roll smooth, roll fast, roll confident. Wherever the road takes you, roll with Synapse – our most comfortable, all-around, up-for-anything, pure road machine.
Versatile performance meets refined comfort. The Synapse 2’s lightweight alloy frame keeps the ride rapid, responsive, and smooth, while Shimano’s new CUES U6000 road group offers durable, reliable shifting and braking. With proven DT Swiss 470 wheels and plenty of gear mounts, this is your go-anywhere, ride-forever companion.
Enjoyable road riding with comfort, speed, and finesse
| Frame | Synapse, lightweight SmartForm C2 Alloy, SmartSense compatible, BSA threaded BB, internal cable routing, flat mount, 142x12 thru-axle, removable fender bridge, hidden rack/fender mounts |
| Fork | Synapse Carbon, integrated crown race, 12x100mm thru-axle, internal routing, flat mount brake, fender mounts |
| Headset | Integrated, 1-1/8" - 1-1/4" |

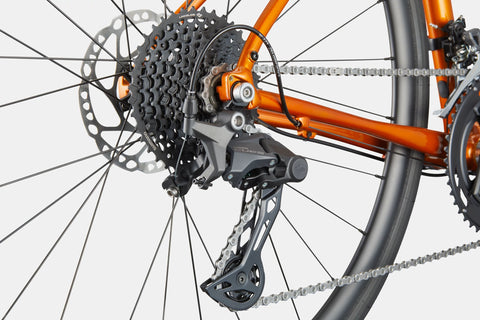

| Rear Derailleur | Shimano CUES U6020 |
| Front Derailleur | Shimano CUES U6030 |

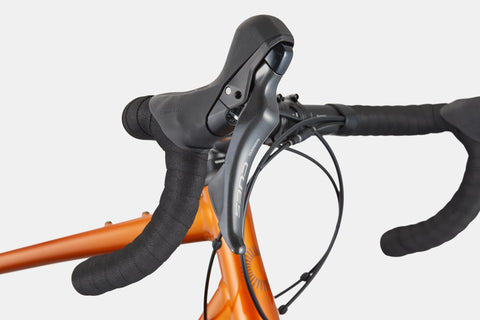

| Shifters | Shimano CUES U6030, 10-speed |
| Chain | Shimano LG500, 10-speed |
| Crank | Shimano CUES 6040, 46/32 |
| Rear Cogs | Shimano CUES LG300, 11-39, 10-speed |
| Bottom Bracket | Shimano RS500 |
| Brakes | Shimano CUES hydraulic disc, 160/160mm RT64 rotors |
| Brake Levers | Shimano CUES hydraulic disc |
| Front Hub | Formula CL-712, 12x100mm centerlock |
| Rear Hub | Formula RXC-400, 12x142mm centerlock |
| Rims | DT Swiss R470 DB, 28h, tubeless compatible |
| Spokes | Stainless Steel, 14g |
| Tire Size | 30 |
| Wheel Size | 700c |
| Tires | Zaffiro Pro Bright Black Reflective, 700x30c |
| Front Tire | Vittoria Zaffiro Pro V, 700x30c, reflective strip |
| Rear Tire | Vittoria Zaffiro Pro V, 700x30c, reflective strip |

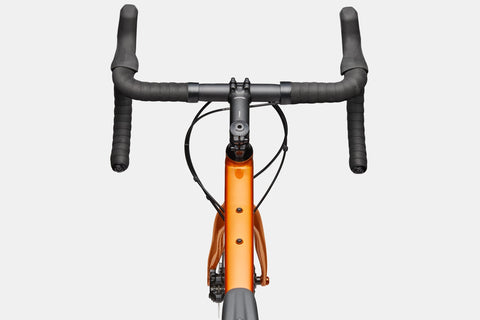

| Handlebar | Cannondale 3, 6061 Alloy, Compact |
| Stem | Cannondale 3, 6061 Alloy, 31.8, 7° |
| Grips | Cannondale Bar Tape, 3.5mm |
| Saddle | Fizik Aliante Delta, S-alloy rails |
| Seatpost | Cannondale 3, 6061 Alloy, 27.2x350mm |
| Extra 1 | Trainer axle end caps |
| Size | 44.0 | 48.0 | 51.0 | 54.0 | 56.0 | 58.0 | 61.0 |
|---|---|---|---|---|---|---|---|
| Wheel Size | 700c | 700c | 700c | 700c | 700c | 700c | 700c |
| A – Seat Tube Length (cm) | 40.0 | 42.2 | 44.3 | 48.0 | 52.0 | 55.0 | 59.0 |
| B – Top Tube Horizontal (cm) | 52.1 | 53.3 | 54.4 | 55.5 | 56.7 | 58.0 | 59.8 |
| D – Head Tube Angle | 70.2° | 70.8° | 71.0° | 71.9° | 72.0° | 72.0° | 72.0° |
| E – Seat Tube Angle Effective | 73.0° | 73.0° | 73.0° | 73.0° | 73.0° | 73.0° | 73.0° |
| F – Standover (cm) | 68.1 | 70.2 | 72.3 | 75.3 | 78.4 | 81.0 | 84.5 |
| G – Head Tube Length (cm) | 9.6 | 11.5 | 14.0 | 16.0 | 18.1 | 20.5 | 23.6 |
| H – Wheelbase (cm) | 98.5 | 99.3 | 100.6 | 101.0 | 102.1 | 103.5 | 105.4 |
| I – Front Center (cm) | 58.4 | 59.1 | 60.2 | 60.6 | 61.7 | 63.0 | 64.9 |
| J – Chain Stay Length (cm) | 41.5 | 41.5 | 41.5 | 41.5 | 41.5 | 41.5 | 41.5 |
| K – Bottom Bracket Drop (cm) | 8.0 | 8.0 | 7.5 | 7.3 | 7.3 | 7.0 | 7.0 |
| L – Bottom Bracket Height (cm) | 26.3 | 26.3 | 26.8 | 27.0 | 27.0 | 27.3 | 27.3 |
| M – Fork Rake (cm) | 5.5 | 5.5 | 5.5 | 5.5 | 5.5 | 5.5 | 5.5 |
| N – Trail (cm) | 6.5 | 6.1 | 6.0 | 5.4 | 5.4 | 5.4 | 5.4 |
| O – Stack (cm) | 51.0 | 53.0 | 55.0 | 57.0 | 59.0 | 61.0 | 64.0 |
| P – Reach (cm) | 36.5 | 37.1 | 37.6 | 38.1 | 38.7 | 39.3 | 40.2 |
