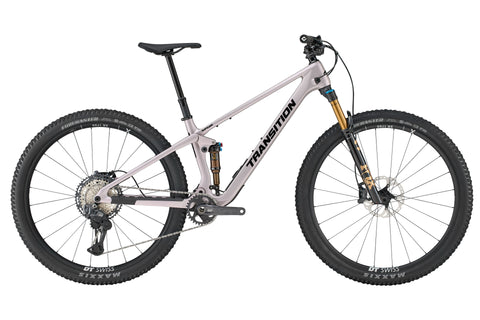

Transition - Spur Carbon XT Di2

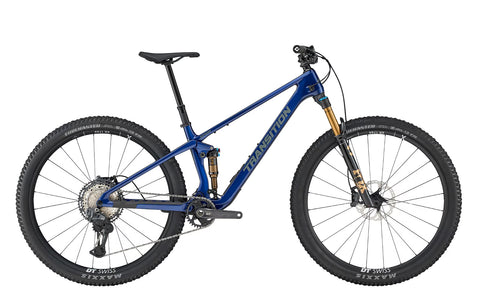

Transition - Spur Carbon XT Di2 - Image 2
Transition - Spur Carbon XT Di2 - Image 3
Transition - Spur Carbon XT Di2 - Image 4
Transition

Spur Carbon XT Di2

Regular price

$10,299.99

Select your desired pickup location at checkout. We will transfer the product for you!🚚 We ship from all locations.
Color
Size

Local Pickup - Select your preferred pickup location at checkout.
Local Pickup - Select your preferred pickup location at checkout.
We Ship Canada Wide
We Ship Canada Wide

THE SINGLETRACK ENTHUSIAST

The Spur is our cross-country bike that refuses to be confined by labels. Now featuring 120mm rear and 130mm front travel paired with our famously progressive geometry, it blurs the lines of traditional XC. It's fast enough to race, tough enough for downcountry, and versatile enough to pull trail duty after hours. The Spur's broad range doesn't compromise performance in the category, it delivers across the board, making it the perfect ride for true singletrack enthusiasts.

THE BIKE FOR RACE DAY AND EVERY OTHER DAY

Lightweight, razor-sharp, and unapologetically fast, the Spur is drawing XC athletes and performance-driven riders away from their old stiff XC bike and toward something far more capable. It delivers the precision and control to charge climbs, shred descents, and thread technical lines with confidence, redefining what an XC bike can do. On trail, it's pure Transition: lively, playful, and eager to rail corners, boost every bump or root, and turn every feature into an opportunity for fun. It's this high-energy personality that resonates with riders who aren't interested in following the traditional XC mold, they're here to forge their own line.

MORE TRAVEL, NO COMPROMISE

The Spur now features 130mm of front travel, optimized around the latest Fox 34 Float SL, a fork that delivers increased capability without adding weight. This upgrade reflects the evolving demands of modern XC, where courses are becoming more technical and terrain more aggressive. We anticipate this longer travel configuration becoming the new standard in the category. For everyday riders, the added front-end support expands the Spur's trail versatility, offering greater confidence and control on descents without compromising efficiency on the climbs.

Frame Spur Carbon 120mm
Wheel Size 29"
Rear Shock Fox Float SL Factory (190x45mm)
Fork Fox Float 34 SL Grip X Factory (130mm)
Headset FSA No.42/48/ACB
Stem RaceFace Aeffect R (40mm)
Handlebar RaceFace Era Carbon Bar SM (760x20mm) MD (780x40mm) LG/XL (800x40mm)
Grips ODI Elite Flow Lock-On
Saddle SDG Bel Air 3 LUX
Seatpost OneUp Dropper Post SM (150mm) MD (180mm) LG/XL (210mm)
Brakes Shimano XT M8220 4 Piston
Rotors Shimano RT86 (180mm)
Shifter Shimano XT Di2 SW-M8250-R
Derailleur Shimano XT Di2 RD-M8250-SGS
Cassette Shimano XT CS-M8200 (10–51t)
Chain Shimano XT CN-8100
Crank Shimano XT FC-8200 (32t / 165mm)
Rims DT Swiss XR 1700 Spline
Spokes DT Swiss Competition Straightpull
Hubs DT Swiss 350 Spline Ratchet 54
Front Tire Maxxis Forekaster 3C EXO+ (2.4)
Rear Tire Maxxis Forekaster 3C EXO+ (2.4)
Included Shimano Di2 Battery Charger, Tubeless Valves & Sealant


SM (High | Low) MD (High | Low) LG (High | Low) XL (High | Low)
A. Reach 430 | 425 460 | 455 485 | 480 510 | 505
B. Stack 608 | 612 617 | 621 626 | 630 640 | 644
C. Effective Toptube Length 570 603 631 660
D. Seattube Length 360 390 430 460
E. Effective Seattube Angle 77.3 | 76.7 76.8 | 76.3 76.4 | 75.9 76.0 | 75.6
Saddle Height for Effective Seattube Angle 600 660 720 780
Actual Seattube Angle 72 | 71.5 72 | 71.5 72 | 71.5 72 | 71.5
F. Headtube Length 100 110 120 135
G. Headtube Angle 66.0 | 65.5 66.0 | 65.5 66.0 | 65.5 66.0 | 65.5
H. Chainstay Length 434 | 436 434 | 436 439 | 441 439 | 441
I. Wheelbase 1163 1197 1231 1262
J. Bottom Bracket Drop (Rear) 40 | 47 40 | 47 40 | 47 40 | 47
K. Estimated Bottom Bracket Height 335 | 328 335 | 328 335 | 328 335 | 328
Standover Height 660 660 660 660
