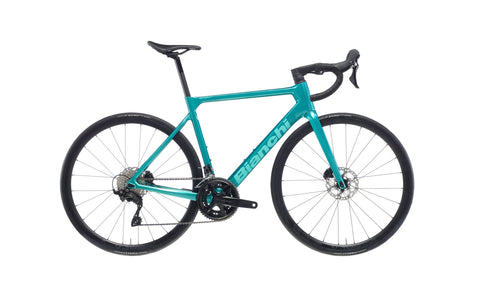

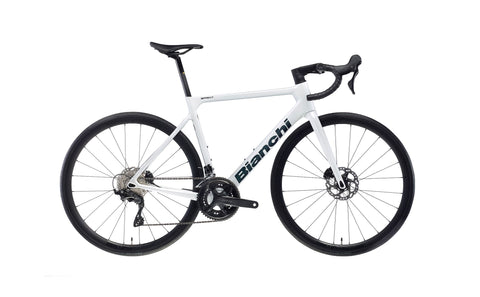

Bianchi - Sprint 105 ICR 12S
Bianchi

Sprint 105 ICR 12S

$3,999.99

Select your desired pickup location at checkout. We will transfer the product for you!🚚 We ship from all locations.
Color
Size

Local Pickup - Select your preferred pickup location at checkout.
Local Pickup - Select your preferred pickup location at checkout.
We Ship Canada Wide
We Ship Canada Wide

The new Sprint is the result of meticulous engineering and an aesthetic restyling of the popular model in the all-rounder range.

Specs

Frame Sprint carbon monocoque, mechanical/electronic, BB PressFit 86.5x41, head tube 1.4"-1.5", integrated seat clamp, full carbon dropout, disc brake flat mount, thru axle 12×142, sizes 47–61 cm
Fork Full Carbon Aero Road, 1.4"–1.5" integrated head, disc brake flat mount, thru axle 12×100
Headset ACROS & FSA for internal cable routing
Shifters Shimano 105 hydraulic disc brake shifters for road, 160 mm rotor
Rear Derailleur Shimano 105 12-speed, direct attachment, max 36T
Front Derailleur Shimano 105 12-speed, top gear 50–54T, 16T capacity
Crankset Shimano 105 12-speed; crank length: 170 mm (47/53 cm), 172.5 mm (55/59 cm), 175 mm (61 cm)
Bottom Bracket Shimano SM-BB72-41B, press-fit road, bearing, inner cover
Chain Shimano
Brakes Shimano hydraulic disc brakes (integrated with shifter)
Rotor Shimano SM-RT70 center lock rotor, 160 mm
Wheels Velomann alloy, disc brake, 30 mm rim profile, Team TC J-bend hubs, 2 mm round black spokes, clincher 622×19C, rim tape, front HH12 / rear HH12-142
Tires Vittoria Rubino IV G2.0 Graphene, 700×25, 60 TPI
Stem Velomann Alloy 6061, −7°, lengths: 80 mm (44 cm), 90 mm (47/50 cm), 100 mm (53 cm), 110 mm (55/57 cm), 120 mm (59/61 cm)
Handlebar Velomann Compact Alloy 6061, 31.8 mm clamp, reach 80 mm, drop 130 mm; widths: 400 mm (44/53 cm), 420 mm (55/59 cm), 440 mm (61 cm)
Grips Bianchi cork, black
Seatpost Velomann Alloy 6061, 15 mm offset, 27.2 mm diameter; length: 300 mm (44 cm), 350 mm (47–61 cm)
Saddle Velomann Seta



Geometry

Size A B C D E F G G1 H I X Y WB
470 420 515 410 60 105 580 74.5° 70.5° 43 373 377 497 982
500 450 525 410 60 110 582 74.5° 71.5° 43 373 383 505 983
530 480 535 410 68 125 583 74° 72° 43 373 384 529 984
550 500 550 413 68 140 588 73.5° 73° 43 373 388 545 991
570 520 560 413 68 155 593 73.5° 73° 43 373 393 561 996
590 540 575 413 68 175 603 73° 73° 43 373 396 580 1006
610 560 585 413 68 195 607 72.5° 73° 43 373 397 599 1012
