$5,499.99
-25% Sale price
2% Transaction Fee
A 2% transaction fee is applied to on-sale bikes priced above $2,000 to offset payment processing and fraud-prevention costs and support competitive sale pricing.

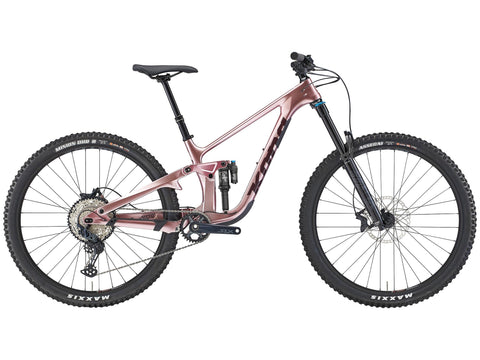

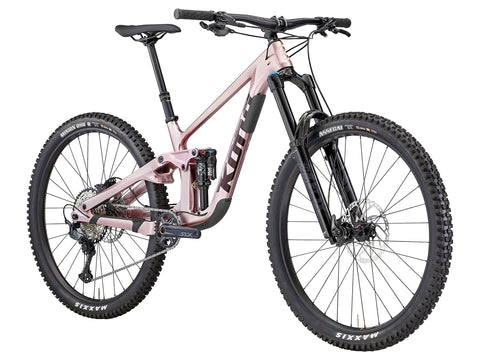

For riders who want to go big without blowing the budget, the Process X CR delivers where it counts. Its lightweight carbon frame is paired with a durable, performance-focused build, so your investment goes straight into capability on the trail.
With 170mm of ultra-plush suspension, it smooths out massive hits and makes quick work of the features you’ve been eyeing. And while it’s built to charge hard on the descents, it’s equally designed to climb efficiently — so you’ll still have plenty left in the tank when it’s time to drop in again.
| Category | Specification |
|---|---|
| Frame Material | Kona Carbon, 162mm Travel |
| Sizes | S, M, L, XL |
| Rear Shock | Fox Float X Performance Elite Trunnion |
| Fork | Fox 38 Performance Grip Damper, 170mm |
| Crankarms | Shimano SLX |

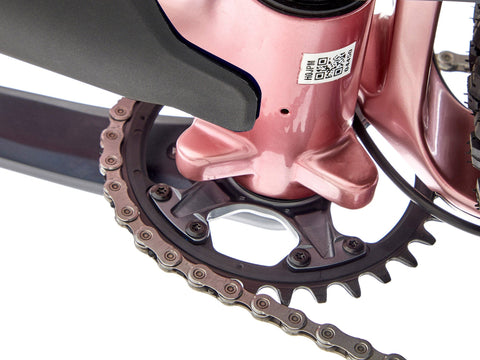

| Chainrings | 32T |
| Bottom Bracket | Shimano PF92 |
| Pedals | n/a |
| Chain | Shimano Deore 12-speed |

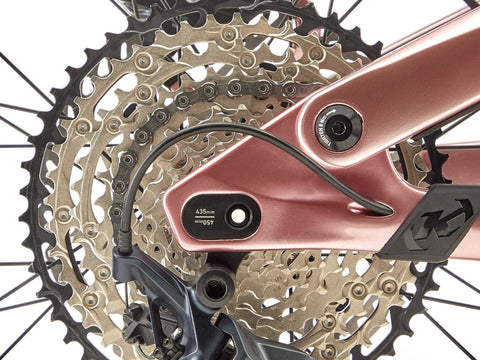

| Cassette | Shimano SLX 10-51T, 12-speed |
| Chainguide | n/a |
| Front Derailleur | n/a |
| Rear Derailleur | Shimano SLX 12-speed |
| Shifters | Shimano XT 12-speed |
| Brake Calipers | Shimano Deore |
| Front Brake Rotor | Shimano RT66, 203mm |

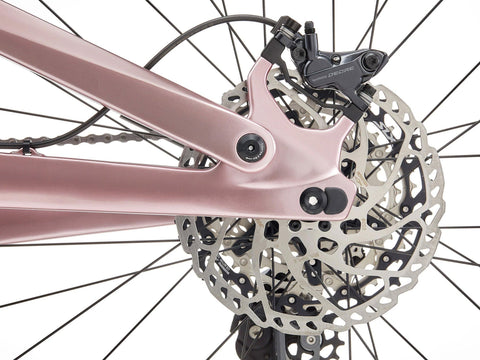

| Rear Brake Rotor | Shimano RT66, 203mm |
| Brake Levers | Shimano Deore |
| Headset | FSA Orbit 1.5 EP ZS |
| Handlebar | Kona XC/BC 35 |
| Stem | Kona XC/BC 35 |
| Seatpost | TranzX Dropper +RAD Internal w/ Shimano Lever, 31.6mm |
| Seat Clamp | Kona Clamp |
| Grips | Kona Key Grip |
| Saddle | WTB Volt |
| Front Hub | DT Swiss 370, 110x15mm |
| Rear Hub | DT Swiss 370, 148x12mm |
| Spokes | Stainless Black 14g |
| Rims | WTB KOM Trail i30 TCS |
| Front Tire | Maxxis Assegai EXO+ TR 3C, 29x2.5" WT |
| Rear Tire | Maxxis Minion DHR II EXO+ TR 3C, 29x2.4" WT (27.5x2.4" WT size S) |
| Paint Color | Gloss Metallic Dusty Rose w/ Chocolate & Bronze Decals |
| # | Measurement | S | M | L | XL |
|---|---|---|---|---|---|
| 1 | ST Length | 380 | 380 | 420 | 450 |
| 2 | TT Length | 569 | 594 | 623 | 662 |
| 3 | Reach | 440 | 465 | 490 | 525 |
| 4 | Stack | 615 | 615 | 625 | 635 |
| 5 | Standover | 690 | 700 | 710 | 720 |
| 6 | HT Angle | 63.5 | 63.5 | 63.5 | 63.5 |
| 7 | HT Length | 94 | 94 | 105 | 116 |
| 8 | ST Angle | 78.2 | 78.2 | 78 | 77.9 |
| 9 | CS Length | 435 (450) | 435 (450) | 435 (450) | 435 (450) |
| 10 | BB Drop | 20 | 30 | 30 | 30 |
| 11 | BB Height | 345 | 345 | 345 | 345 |
| 12 | Wheelbase | 1213 (1228) | 1238 (1253) | 1268 (1283) | 1308 (1323) |
| 13 | Front Center | 779 | 804 | 834 | 874 |
| 14 | Fork Length | 581 | 581 | 581 | 581 |
| 15 | Fork Offset | 44 | 44 | 44 | 44 |
| Rider Height | Height (cm) | Inseam (in) | Inseam (cm) | Recommended Size |
|---|---|---|---|---|
| 4'10" – 5'1" | 147 – 155 cm | 24" – 27" | 61 – 69 cm | XS |
| 5'0" – 5'3" | 152 – 160 cm | 26" – 29" | 66 – 74 cm | Small |
| 5'2" – 5'7" | 157 – 170 cm | 27" – 30" | 69 – 76 cm | Small / Medium |
| 5'6" – 5'10" | 168 – 178 cm | 29" – 31" | 74 – 79 cm | Medium |
| 5'9" – 6'0" | 175 – 183 cm | 30" – 33" | 76 – 84 cm | Medium / Large |
| 5'11" – 6'2" | 180 – 188 cm | 32" – 35" | 81 – 89 cm | Large / XL |
| 6'1" – 6'5" | 185 – 196 cm | 33" – 36" | 84 – 91 cm | Large / XL |
