$9,049.99
Sale price
2% Transaction Fee
A 2% transaction fee is applied to on-sale bikes priced above $2,000 on all Credit & Financing payments to offset payment processing and fraud-prevention costs and support competitive sale pricing.

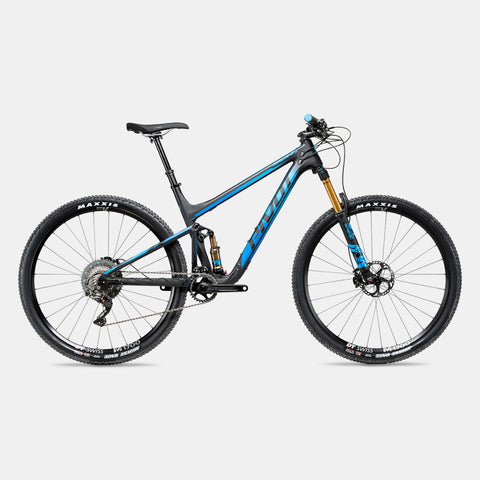

The all-new Mach 4 SL is designed to let World Cup level athletes capitalize on every inch of increasingly technical courses and generate speed where others hesitate. Our engineers have pushed the boundaries in every conceivable metric of cross country performance. It’s the lightest, fastest 100mm travel XC race bike we’ve ever developed. Go ahead, turn yourself inside out and leave it all out on the race course because the new Mach 4 SL leaves nothing on the table.

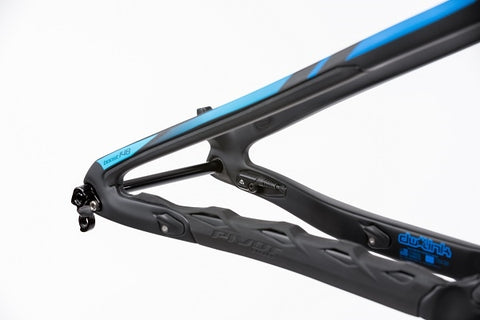

Cross country racers know that every gram counts. Pivot’s engineers didn’t set out to cut a few grams – they insisted on slashing hundreds. Starting at 1845 grams, the Mach 4 SL takes a front row seat in the ultralight full suspension category and has the best stiffness to weight ratios we've ever created. The new Mach 4SL is over 300 grams lighter than its feathery predecessor, the Mach 429 SL - that’s 3/4 of a pound! Optimized tube shapes, a more compact frame design, exotic hi-mod materials, and a dual upright, reinforced swingarm push strength and stiffness while allowing weight to be shaved everywhere. More weight evaporates with an integrated headset and race-proven carbon suspension bearing pockets that leave almost no metal in the frame. Steep climbs and sharp accelerations never felt so good – or fast.
|
Wheel Size |
29" |
|
Frame Material |
Carbon Fiber |
|
Frame Material Details |
Full Hollow Core Molding Technology Carbon; cold-forged alloy linkages; molded chainstay, seatstay, and down tube protection |
|
Rear Travel |
100mm |
|
Rear Shock |
FOX FLOAT DPS Factory, remote lockout, 190mm x 40mm |
|
Fork |
FOX FLOAT 32 (100mm) or 34 (120mm) Step-Cast (SC) Factory, remote lockout, 44mm offset |
|
Fork Travel |
100mm or 120mm |
|
Head Tube Diameter |
Tapered, 1.125" top, 1.5" bottom |
|
Headset |
Pivot Precision, sealed integrated cartridge bearings |
|
Handlebar |
Phoenix Team Flat Carbon, 760mm width |
|
Stem |
Phoenix Team XC/Trail |
|
Grips |
Phoenix Factory, lock-on |
|
Brakes |
Shimano Deore XT M8100, 2-piston, Shimano XT CENTER LOCK 160mm rotors |
|
Brake Levers |
Shimano Deore XT M8100 |
|
Drivetrain |
1x |
|
Shifters |
Shimano Deore XT M8100, 12-speed |
|
Front Derailleur |
None |
|
Rear Derailleur |
Shimano XTR M9100, 12-speed, SGS cage |
|
ISCG Tabs |
ISCG05 (front two inserts only) |
|
Chainguide |
None |
|
Cranks |
Race Face Aeffect R |
|
Chainrings |
Race Face Aeffect R, 34 tooth |
|
Bottom Bracket |
Press-fit BB92 (PF92) |
|
Pedals |
None |
|
Chain |
Shimano Deore XT M8100, 12-speed |
|
Cassette |
Shimano Deore XT M8100, 12-speed, 10-51 tooth |
|
Rims |
DT Swiss M1700, 25mm width |
|
Hubs |
DT Swiss 350, 110x15mm Boost front, 148x12mm Boost rear with 36-tooth Star Ratchet and MICRO SPLINE driver |
|
Spokes |
DT Swiss wheelset |
|
Tires |
Maxxis Ardent Race, EXO, TR, 120 TPI, 29" x 2.2" |
|
Saddle |
Phoenix WTB Pro Volt |
|
Seatpost |
FOX Transfer Factory dropper |
|
Seatpost Diameter |
30.9mm |
|
Seatpost Clamp |
Single bolt |
|
Rear Dropout / Hub Dimensions |
148x12mm Boost |
|
Max. Tire Size |
29" x 2.35" |
|
Bottle Cage Mounts |
One inside front triangle on all sizes; XL can fit two inside front triangle |
|
Colors |
Deep Lake Blue, Team Blue, Cherry, Stealth |
|
Warranty |
10 years frame, 1 year paint and finish, 5 years Phoenix components |
