$8,799.99
Save 30% Sale price

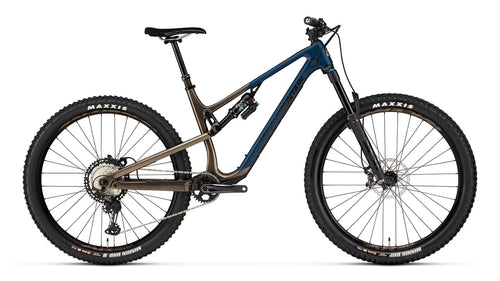

If you’re looking for one bike that does it all, look no further than the Instinct. We’ve designed a bike that’s capable of tackling technical trail riding but still allows you to push the pedals hard on the climbs.
|
Frame |
SMOOTHWALL™ Carbon | Full Sealed Cartridge Bearings | Press Fit BB | Internal Cable Routing | 2-Bolt ISCG05 Tabs | RIDE-9™ Adjustable Geometry | 2 Position Axle | 140mm Travel. SMOOTHWALL™ Carbon Rear Triangle |
|
Fork |
Fox 36 Float EVOL FIT4 Performance Elite Series 150mm | 27.5 = 37mm Offset | 29 = 44mm Offset |
|
Front Travel |
150 |
|
Shock |
Fox Float X Performance Elite | Sealed Bearing Eyelet | 25x8mm F Hardware | XS - SM = 190x45mm | MD - LG - XL = 210x52.5mm | Size-Specific tune in FAQ |
|
Rear Travel |
140 |
|
Headset |
FSA Orbit NO.57E | Sealed Stainless 36°x45° Bearings | 30.2mm x 41mm x 7.1mm Upper | 40mm x 51.8mm x 7.5mm Lower | 1.5" Crown Race |
|
Stem |
Rocky Mountain 35 AM | 5° Rise | All Sizes = 40m |
|
Handlebar |
Rocky Mountain AM | 780mm Width | 25mm Rise | 9° Backsweep | 5° Upsweep | 35 Clamp |
|
Grips |
ODI Elite Pro Lock On |
|
Brakes |
Shimano XT Trail 4 Piston | Metal Pads | F:Shimano RT66 180mm | R:Shimano RT66 180mm |
|
Shifters |
Shimano XT |
|
Rear Derailleur |
Shimano XT |
|
Cranks & Chainring |
Shimano XT | 32T | 24mm Spindle | Crankarm Length: XS = 165mm Crankarm | SM - XL = 170mm |
|
Bottom Bracket |
Shimano SM-BBMT500 |
|
Cassette |
Shimano XT 10-51T |
|
Chain |
Shimano M8100 |
|
Front Hub |
Rocky Mountain Sealed Boost 15mm |
|
Rear Hub |
DT Swiss 370 Boost 148mm | 18T Star-Ratchet |
|
Spokes |
DT Swiss Competition 2.0/1.8/2.0 |
|
Rims |
Race Face AR 30 | 32H | Tubeless Ready - Tape / Valves Incl |
|
Tires |
F: Maxxis Minion DHF 2.5 WT 3C MaxxTerra EXO+ Tubeless Ready // R: Maxxis Minion DHR II 2.4 WT 3C MaxxTerra EXO+ Tubeless Ready |
|
Seatpost |
Race Face Turbine R (by Fox) Dropper 30.9mm | XS - SM = 125mm | MD = 150mm | LG = 175mm | XL = 200mm |
|
Saddle |
WTB Volt Race 142 |
|
Weight |
This information isn't available yet. We will update the weight of this model as soon as possible. |
|
Notes |
We make every effort to ensure accuracy, but reserve the right to update specifications & prices without notification. |
Are you looking for more information? Reach out to Paul, and he'll get right back to you!
