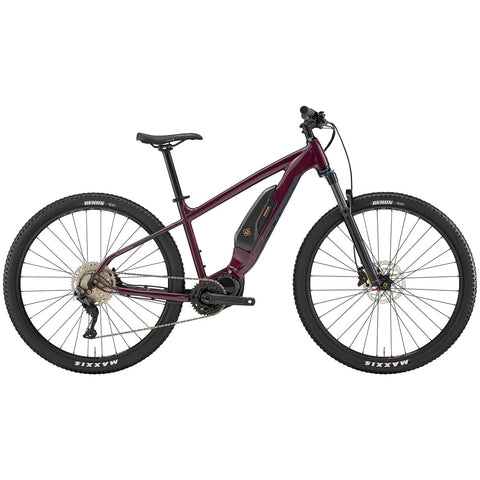

Kona - El Kahuna Purple
Kona - El Kahuna Purple - Image 2
Kona - El Kahuna Purple - Image 3
Kona - El Kahuna Purple - Image 4
Kona - El Kahuna Purple - Image 5
Kona - El Kahuna Purple - Image 6
Kona - El Kahuna Purple - Image 7
Kona - El Kahuna Purple - Image 8
Kona - El Kahuna Purple - Image 9
Kona - El Kahuna Purple - Image 10
Kona - El Kahuna Purple - Image 11
Kona - El Kahuna Purple - Image 12
Kona - El Kahuna Purple - Image 13
Kona - El Kahuna Purple - Image 14
Kona

El Kahuna Purple

Size

$2,999.99

Regular price

$4,099.99

Save 27% Sale price

El Kahuna Purple

$2,999.99

Regular price

$4,099.99

Save 27% Sale price
Local Pickup - Leave us an order note in your cart with your preferred pickup location, and we'll arrange to have it shipped there for you.
Free Shipping on bikes over $1000
Not available in your store? Leave us an order note in your cart and we’ll ship it to your preferred store.

Description

The Kahuna is one of our best-selling hardtails. People love its simplicity and practicality. We brought that ethos to the El Kahuna and built a bike that was multipurpose—capable of riding the local singletrack for hours on end, and still have enough battery to go get the groceries on the way home. Its Shimano pedal-assist motor is powered by a semi-integrated battery and its 100mm fork provides just the right amount of suspension to absorb smaller hits on the trail. 29” wheels with 2.25” tires make this bike comfortable across all kinds of terrain. The El Kahuna the perfect all-rounder.

SPECIFICATIONS

FRAME MATERIAL Kona 6061 Aluminum Butted
SIZES S, M, L, XL
REAR SHOCK n/a
FORK Suntour XCR34 Air 100mm Tapered 110 Spacing
CRANKARMS FSA E-Bike
CHAINRINGS 36t
B/B n/a
PEDALS n/a
CHAIN Shimano HG54
CASSETTE Shimano Deore 11-46t 10spd
CHAINGUIDE n/a
F/D n/a
R/D Shimano Deore
SHIFTERS Shimano Deore
BRAKE CALIPERS Shimano MT410
FRONT BRAKE ROTOR Shimano RT10 180mm (centerlock)
REAR BRAKE ROTOR Shimano RT10 160mm (centerlock)
BRAKE LEVERS Shimano MT401
HEADSET FSA No.57BP
HANDLEBAR Kona XC/BC Riser
STEM Kona XC
SEATPOST Kona Thumb w/Offset 31.6mm
SEAT CLAMP Kona QR
GRIPS Kona Key Grip
SADDLE WTB Volt
FRONT HUB Shimano 110x15mm
REAR HUB Shimano 135x10mm
SPOKES Stainless 14g
RIMS WTB ST i27 TCS 2.0
FRONT TIRE WTB Trail Boss 29x2.25"
REAR TIRE WTB Trail Boss 29x2.25"
DRIVE UNIT Shimano E6100 20MPH
BATTERY Shimano 504Wh
DISPLAY Shimano SC-E7000 Display
CHARGER Shimano STEPS 2A
BATTERY LOCK Abus
PAINT COLOR Gloss Plum w/ Metallic Brass & Matte Ink Decals
EXTRAS n/a

All specifications are subject to change without notice


GEOMETRY

  SIZE S M L XL
1 ST LENGTH 370 420 470 530
2 TT LENGTH 581 607 633 665
3 REACH 404 428 453 484
4 STACK 619 623 628 633
5 STANDOVER 738 742 747 766
6 HT ANGLE 69.0 69.0 69.0 69.0
7 HT LENGTH 110 115 120 125
8 ST ANGLE 74.0 74.0 74.0 74.0
9 CS LENGTH 465 465 465 465
10 BB DROP 60 60 60 60
11 BB HEIGHT 315 315 315 315
12 WHEELBASE 1134 1160 1187 1220
13 FRONT CENTER 676 701 728 761
14 FORK LENGTH 506 506 506 506
15 FORK OFFSET 51 51 51 51
