Kona

Big Honzo DL

Color:
Size:
Regular price

$2,299.99

Big Honzo DL

Regular price

$2,299.99

Free in-store Pickup

Order online, get it at your local Mud, Sweat, and Gears store.

Looking for More Info?

Reach out to Paul, and he'll get right back to you! Ask Paul!

In Store Availability

Description

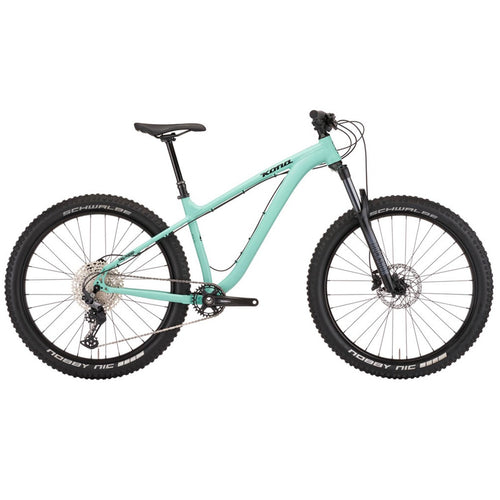

The Big Honzo DL is exactly what the name implies. It’s a Honzo with bigger tires and a nice build kit featuring hydraulic disc brakes and 130mm of suspension. You’ll get a little extra squish thanks to the 2.8” tires that absorb bumps with ease. Comfortable geometry and an adjustable travel dropper post ensure you’re always at just the right position on your bike whether you’re climbing that big mountain or descending down your favorite flow trail!

Specifications

FRAME MATERIAL Kona 6061 Aluminum Butted
SIZES S, M, L, XL
REAR SHOCK n/a
FORK RockShox 35 Silver TK Solo Air 130mm Tapered 110mm Spacing
CRANKARMS Shimano Deore 12 spd
CHAINRINGS 32t
B/B Shimano 73mm
PEDALS n/a
CHAIN Shimano Deore 12spd
CASSETTE Shimano Deore 10-51t 12spd
CHAINGUIDE n/a
F/D n/a
R/D Shimano Deore 12spd
SHIFTERS Shimano Deore 12spd
BRAKE CALIPERS Shimano MT410 Hydraulic
FRONT BRAKE ROTOR Shimano RT30 180mm (centerlock)
REAR BRAKE ROTOR Shimano RT30 160mm (centerlock)
BRAKE LEVERS Shimano MT410 Hydraulic
HEADSET Feimen HP-H868B
HANDLEBAR Kona XC/BC 35
STEM Kona XC/BC 35
SEATPOST TranzX Dropper Internal 31.6mm
SEAT CLAMP Kona Clamp
GRIPS Kona Key Grip
SADDLE Kona Trail
FRONT HUB Shimano 110x15mm (centerlock)
REAR HUB Shimano 148x12mm (centerlock)
SPOKES Stainless Black 14g
RIMS WTB ST i35 TCS 2.0
FRONT TIRE Schwalbe Nobby Nic TLE 27.5x2.8"
REAR TIRE Schwalbe Nobby Nic TLE 27.5x2.8"
PAINT COLOR Satin Crème de Menthe w/ Charcoal Decals
EXTRAS n/a

All specifications are subject to change without notice

Geometry

  SIZE S M L XL
1 ST LENGTH 370 420 470 530
2 TT LENGTH 591 619 646 684
3 REACH 425 450 475 510
4 STACK 621 630 639 649
5 STANDOVER 725 725 735 760
6 HT ANGLE 67.5 67.5 67.5 67.5
7 HT LENGTH 95 105 115 125
8 ST ANGLE 75.0 75.0 75.0 75.0
9 CS LENGTH 430 430 430 430
10 BB DROP 50 50 50 50
11 BB HEIGHT 310 310 310 310
12 WHEELBASE 1144 1173 1201 1240
13 FRONT CENTER 718 747 776 815
14 FORK LENGTH 541 541 541 541
15 FORK OFFSET 51 51 51 51
