Checkpoint+ SL 6 AXS is an electric gravel bike built for the long haul. Whether you're chasing distant horizons or stacking big training miles, it delivers a smooth, natural-feeling boost exactly when you need it.
The TQ HPR60 motor provides a quiet, seamless assist that feels like a steady tailwind on every climb, while the integrated 360Wh battery keeps you rolling as the miles add up.
Its lightweight OCLV Carbon frame is adventure-ready and paired with durable alloy wheels and a precise 12-speed SRAM GX AXS wireless drivetrain, delivering clean, consistent shifting—even under load.
| Category | Component | Size | Specification |
|---|---|---|---|
| Frameset | Frame | All | 500 Series OCLV Carbon, TQ drive system, tapered head tube, IsoSpeed, internal routing, flat mount disc, fender mounts, UDH, 142x12mm chamfered thru axle |

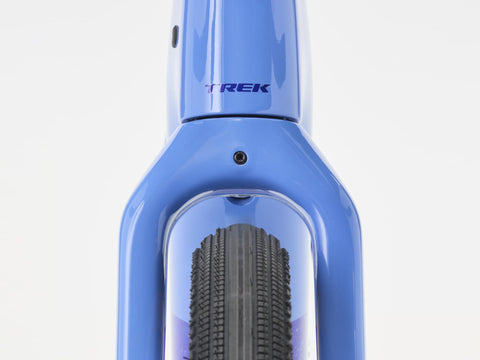

| Fork | All | Checkpoint full carbon, tapered carbon steerer, fender mounts, triple rack mounts, flat mount disc, 12x100mm chamfered thru axle | |
| Weight | Weight | ML | 13.76 kg / 30.34 lbs (with TLR sealant, no tubes) |
| Weight Limit | All | 275 lbs (125 kg) total system weight (bike + rider + cargo) | |
| E-System | Battery | All | TQ 360Wh |
| Charger | All | TQ 4A charger | |
| Display | All | TQ LED display with Bluetooth & ANT+ connectivity | |

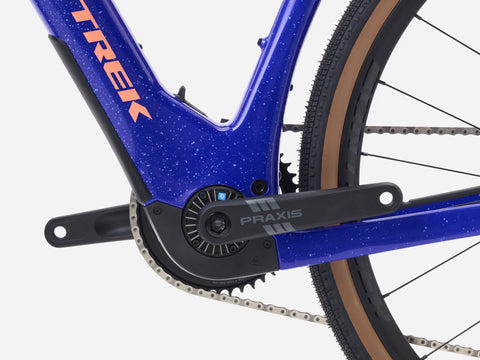

| Motor | All | TQ-HPR60, 60 Nm, 250W continuous, 350W peak | |
| Classification | All | Class 1 | |
| Drivetrain | Shifter | XS, S, M, ML, L, XL | SRAM Rival AXS E1, 13-speed |
| Rear Derailleur | All | SRAM GX Eagle AXS, T-Type | |
| Crank | XS, S | Praxis Alloy, 165mm | |
| M, ML | Praxis Alloy, 170mm | ||
| L, XL | Praxis Alloy, 172.5mm | ||
| Cassette | All | SRAM Eagle XS-1275, T-Type, 10–52T, 12-speed | |
| Chain | All | SRAM GX Eagle, T-Type, 12-speed | |
| Max Chainring Size | All | 1x: 44T | |
| Wheels | Front Wheel | All | Bontrager Paradigm Comp 25, Tubeless Ready, 25mm rim width, 100x12mm thru axle |
| Rear Wheel | All | Bontrager Paradigm Comp 25, Tubeless Ready, 25mm rim width, SRAM XD-R 12-speed freehub, 142x12mm thru axle | |
| Front Skewer | All | Bontrager Switch chamfered thru axle | |
| Rear Skewer | All | Bontrager Switch chamfered thru axle, removable lever | |
| Tire | All | Bontrager Girona Pro, Tubeless Ready, GR puncture protection, aramid bead, 60 tpi, 700x42mm | |
| Tire Sealant | All | Bontrager TLR sealant, 180 ml / 6 oz | |
| Rim Strip | All | Bontrager TLR | |
| Max Tire Size | All | 50mm without fenders, 42mm with fenders (see manual) | |
| Components | Saddle | All | Verse Short Comp, steel rails, 145mm width |
| Seatpost | All | Bontrager carbon, 27.2mm, 8mm offset, 330mm length | |
| Handlebar | XS, S | Bontrager Elite Gravel alloy, 40cm width | |
| M, ML | Bontrager Elite Gravel alloy, 42cm width | ||
| L | Bontrager Elite Gravel alloy, 44cm width | ||
| XL | Bontrager Elite Gravel alloy, 46cm width | ||
| Handlebar Tape | All | Bontrager Supertack Perf tape | |
| Stem | XS | Bontrager Pro, Blendr compatible, 31.8mm, 7°, 70mm | |
| S, M | Bontrager Pro, Blendr compatible, 31.8mm, 7°, 80mm | ||
| ML, L | Bontrager Pro, Blendr compatible, 31.8mm, 7°, 90mm | ||
| XL | Bontrager Pro, Blendr compatible, 31.8mm, 7°, 100mm | ||
| Brake Rotor | All | SRAM Paceline, rounded, centerlock, 160mm | |
| Max Rotor Size | All | 180mm front & rear |
