Take the world by throttle

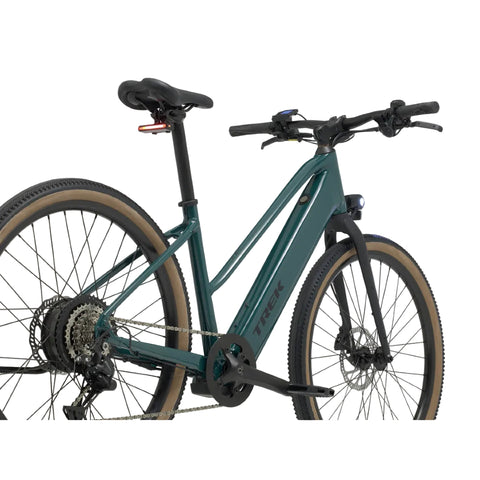

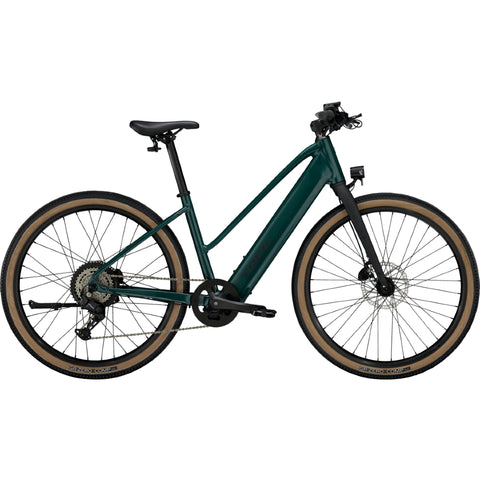

FX+ 1 is a lightweight and fast throttle e-bike built for cruising through town with an ear-to-ear grin. Its handlebar throttle makes getting up to speed a breeze, and pedal assist gives you a smooth boost while you ride. Plus, an EasyMag magnetic charger with a sleek, portable wall-mounted system makes charging between rides easier than ever.
| Frame | Alpha Gold Aluminum |
| Routing | Internal cable routing |
| Battery Integration | Internal battery |
| Mounts | Rack & fender mounts |
| Brake Mount | Flat mount disc brake |
| Kickstand Mount | Yes |
| Hub Motor Spacing | 144.5mm OLD |
| Fork Material | Alloy |
| Brake Routing | Internal |
| Mounts | Fender & rack mounts |
| Skewer Type | ThruSkew 5mm bolt-on |
| Front Hub | Alloy low-flange, 6-bolt disc, 36h, QR |
| Front Skewer | 132x5mm QR, ThruSkew |
| Rim | Alloy double wall, 36h |
| Tire | Bontrager GR0 Comp, 650x50mm, wire bead, 60 tpi |
| Max Tire Size | 650x50mm |
| Battery | 520Wh integrated downtube battery |
| Charger | Trek Easy Mag charger |
| Charger Output | 2.7A, 54.9V |
| Charger Input | 100V–240V AC |
| Display | LCD display |
| Motor | Rear hub drive motor |
| Motor Power | 500W |
| Motor Torque | 60 Nm |
| Motor Spoke Count | 36H |
| E-bike Class | Class 2 |
| Shifter | Shimano M315, 8-speed |
| Rear Derailleur | Shimano ESSA U2000 |
| Crank | Alloy crank, 170mm |
| Chainring | 40T steel |
| Cassette | Shimano HG400, 11–45T, 8-speed |
| Chain | KMC Z8.3 |
| Pedals | Bontrager City pedals |
| Max Chainring Size | 1x: 40T |
| Saddle | Bontrager Sport Women's |
| Seatpost (S/M) | Bontrager alloy, 31.6mm, 12mm offset, 330mm |
| Seatpost (L) | Bontrager alloy, 31.6mm, 12mm offset, 400mm |
| Handlebar (S/M) | Bontrager alloy, 31.8mm, 15mm rise, 690mm |
| Handlebar (L) | Bontrager alloy, 31.8mm, 15mm rise, 720mm |
| Grips | Bontrager XR Endurance Comp, lock-on |
| Stem (S/M) | Bontrager Elite, 31.8mm, 7°, 80mm |
| Stem (L) | Bontrager Elite, 31.8mm, 7°, 90mm |
| Brake System | Rush BH-286 hydraulic disc |
| Rotor Size | 180mm front & rear |
| Rear Light | Sate-Lite M-15 |
| Rear Light Features | Turn signal & brake light |
| Headlight | Herrmans MR8 LED |
| Headlight Output | 180 lumen / 60 lux |
| Kickstand | Alloy rear mount |
| Bike Weight | 22.00 kg / 48.51 lb (Size M) |
| Total Weight Limit | 136 kg / 300 lb (bike + rider + cargo) |
| S (45cm) | M (50cm) | L (55cm) | |
|---|---|---|---|
| Wheel Size | 27.5" | 27.5" | 700c |
| A — Seat Tube | 40.8 | 46.3 | 50.7 |
| B — Seat Tube Angle | 73.5° | 73.0° | 73.0° |
| C — Head Tube Length | 15.5 | 17.0 | 20.0 |
| D — Head Angle | 70.0° | 70.5° | 71.0° |
| E — Effective Top Tube | 56.9 | 57.4 | 59.2 |
| F — Bottom Bracket Height | 28.6 | 28.6 | 28.6 |
| G — Bottom Bracket Drop | 7.0 | 7.0 | 7.0 |
| H — Chainstay Length | 46.8 | 46.8 | 46.8 |
| I — Offset | 5.0 | 5.0 | 5.0 |
| J — Trail | 7.6 | 7.3 | 6.9 |
| K — Wheelbase | 109.2 | 109.5 | 110.9 |
| L — Standover | 65.5 | 67.2 | 69.3 |
| M — Frame Reach | 38.2 | 38.5 | 39.3 |
| N — Frame Stack | 60.4 | 62.0 | 65.0 |
