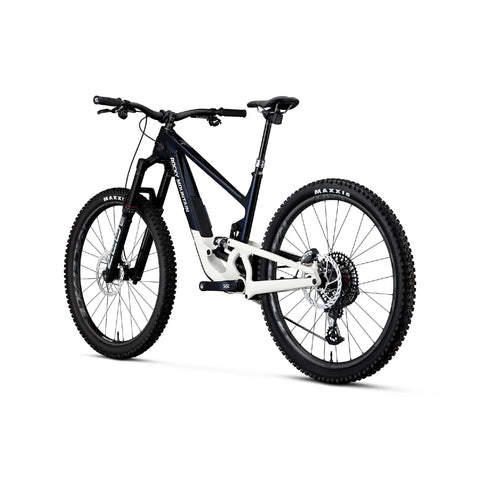

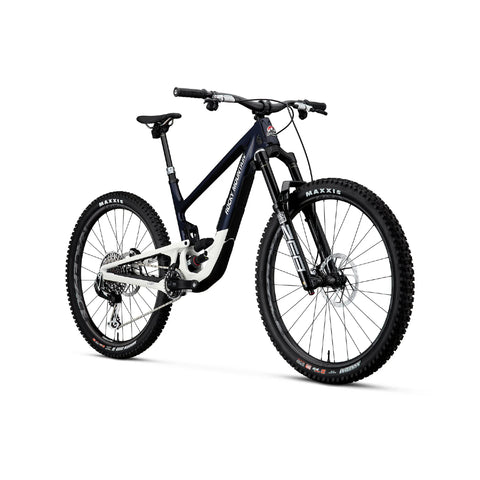

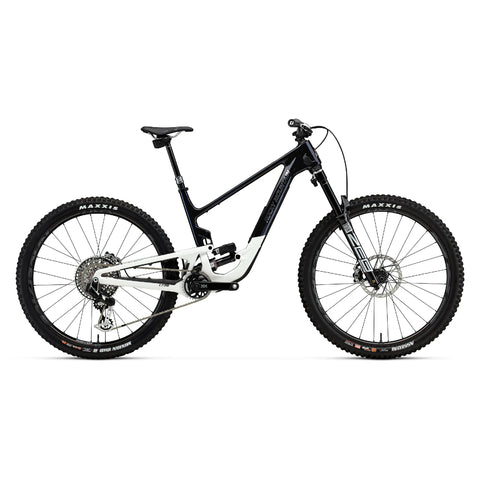

The Altitude Carbon is purpose-built to go fast and demolish steep trails. Fine tune your ride by opting for full 29'' or MX, using the built-in flip chip (sizes MD-XL) or adjust the RIDE-4™ with a single Allen key. Its total enduro capabilities can help you secure that “top step” and own those demanding group rides with confidence. The redesigned Altitude Carbon also features internal routing and the new PenaltyBox™ 2.0 downtube storage. With so much capability in your corner, it’s time to push limits, climb faster, and charge. Enduro lives at Altitude.
| Frame | SMOOTHWALL™ Carbon, full sealed cartridge bearings, BSA bottom bracket, internal cable routing, 2-bolt ISCG05 tabs, RIDE-4™ adjustable geometry, 160mm rear travel, SMOOTHWALL™ carbon rear triangle |
| Fork | RockShox Zeb Ultimate Flight Attendant, 170mm travel (27.5: 38mm offset / 29: 44mm offset) |
| Shock | RockShox Super Deluxe Ultimate Flight Attendant HBO, sealed bearing eyelet, 40x10mm F hardware (SM: 210x55mm / MD–XL: 230x60mm), size-specific tune |
| Front Travel | 170mm |
| Rear Travel | 160mm |
| Headset | FSA Orbit NO.85 Reach Adjust, 0mm cups installed, +/- 5mm cups included, sealed stainless bearings, 30.2x41x7.1mm upper / 40x51.8x7.5mm lower, 1.5" crown race |
| Stem | Race Face Turbine R, 0° rise, 40mm length (all sizes) |
| Handlebar | Race Face Next R, 780mm width, 35mm rise, 8° backsweep, 5° upsweep, 35mm clamp |
| Grips | ODI Elite Pro Lock-On |
| Brakes | SRAM Code RSC 4-piston with metallic pads |
| Shifter | SRAM AXS Wireless Pod Controller |
| Rear Derailleur | SRAM X0 Transmission Wireless |
| Cranks & Chainring | SRAM X0 Transmission Alloy, 32T, DUB spindle, power meter sensor (165mm XS–SM / 170mm MD–XL) |
| Bottom Bracket | SRAM DUB BSA 73 Wide |
| Cassette | SRAM X0 Transmission 10-52T |
| Chain | SRAM XO Flattop T-Type |
| Front Hub | Race Face Vault |
| Rear Hub | Race Face Vault |
| Spokes | Race Face straight pull, butted 2.0–1.65, alloy nipples |
| Rims | Race Face Era Carbon |
| Tires | Front: Maxxis Assegai 2.5 WT 3C MaxxGrip EXO+ (tubeless ready) / Rear: Maxxis Minion DHR II 2.4 WT 3C MaxxTerra DD (tubeless ready) + CushCore Trail inserts |
| Seatpost | RockShox Reverb AXS wireless dropper (150mm SM / 170mm MD–XL) |
| Saddle | WTB Volt Race 142 |
| Weight | 33.4 lbs / 15.1 kg |
| Notes | Specifications may change without notice; manufacturer reserves right to update components and pricing |
