Kona

Remote 130

Size:

$4,800.00

Regular price

$7,999.99

Sale price

Remote 130

$4,800.00

Regular price

$7,999.99

Sale price

Free in-store Pickup

Order online, get it at your local Mud, Sweat, and Gears store. Leave us a note at checkout!

Looking for More Info?

Reach out to Paul, and he'll get right back to you! Ask Paul!

In Store Availability

Description

With the success of both the Process 134 and the Remote 160, it only made sense to blend the two and create the ultimate trail e-MTB. The Remote 130 strikes perfect harmony between an all-mountain trail bike and pedal-assist electric bike. A sturdy aluminum frame holds Shimano’s E7000 motor and 504 Wh battery. Suspension is provided by a 140mm Fox Rhythm 34 Float fork and Performance Float rear shock. Shimano’s new 12-speed Deore drivetrain and 4-piston brakes provide the stop and go. 29” WTB KOM Trail i35 TCS 2.0 wheels are wrapped in Maxxis Minion EXO+ TR 3C rubber. The bike is finished off with a stellar Prism paint job that is sure to be a showstopper on trails everywhere.

SPECIFICATIONS

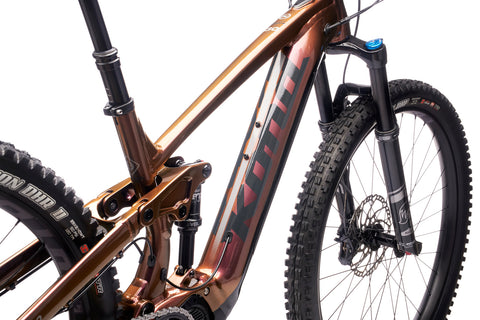

FRAME MATERIAL Kona 6061 Aluminum Butted 130mm Travel
SIZES S, M, L, XL

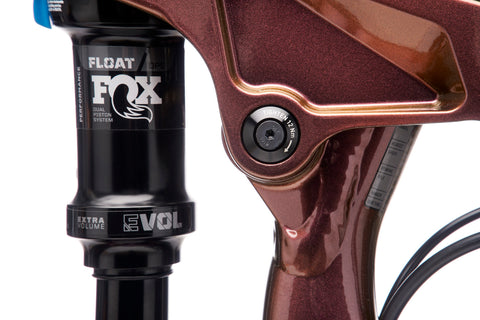

REAR SHOCK Fox Performance Float Trunnion
FORK Fox Rhythm 34 Float 140mm Tapered 110 Spacing
CRANKARMS Shimano E8000
CHAINRINGS 36t
B/B n/a
PEDALS n/a
CHAIN Shimano Deore
CASSETTE Shimano Deore 10-51t 12spd
CHAINGUIDE n/a
F/D n/a
R/D Shimano Deore
SHIFTERS Shimano Deore
BRAKE CALIPERS Shimano Deore
FRONT BRAKE ROTOR Shimano RT66 203mm
REAR BRAKE ROTOR Shimano RT66 180mm
BRAKE LEVERS Shimano Deore
HEADSET FSA No.57E
HANDLEBAR Kona XC/BC 35
STEM Kona XC/BC 35
SEATPOST TranzX Dropper Internal 31.6mm
SEAT CLAMP Kona Clamp
GRIPS Kona Key Grip
SADDLE WTB Volt
FRONT HUB Formula 110x15mm
REAR HUB Formula 148x12mm
SPOKES Stainless Black 14g
RIMS WTB KOM Trail i35 TCS 2.0
FRONTIRE Maxxis Minion DHF EXO+ TR 3C 29x2.5" WT
REAR TIRE Maxxis Minion DHR II EXO+ TR 3C 29x2.4" WT

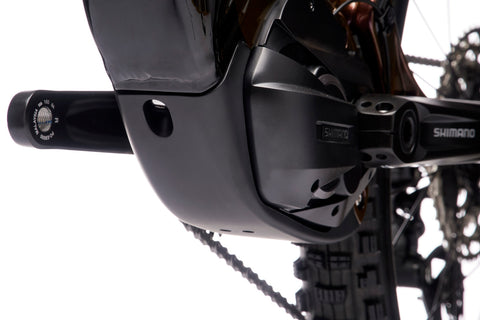

DRIVE UNIT Shimano E7000 20MPH
BATTERY Shimano 504Wh

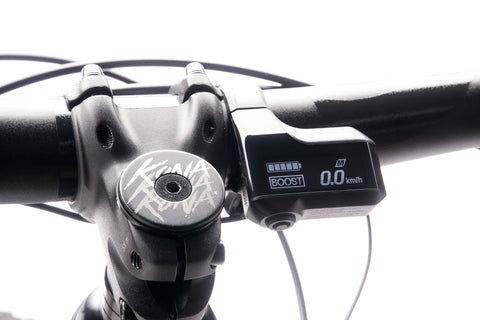

DISPLAY Shimano SC-E7000 Display
CHARGER Shimano STEPS 2A
BATTERY LOCK n/a
PAINT COLOR Gloss Prism Rust-Purple w/ Metallic Silver & Charcoal Decals

All specifications are subject to change without notice

GEOMETRY (mm)

  SIZE S M L XL
1 ST LENGTH 385 410 450 485
2 TT LENGTH 570 597 626 665
3 REACH 425 450 475 510
4 STACK 610 615 625 635
5 STANDOVER 720 720 720 725
6 HT ANGLE 65 65 65 65
7 HT LENGTH 113 118 130 140
8 ST ANGLE 76.6 76.5 76.4 76.3
9 CS LENGTH 435 435 435 435
10 BB DROP 30 30 30 30
11 BB HEIGHT 345 345 345 345
12 WHEELBASE 1186 1213 1243 1282
13 FRONT CENTER 752 780 809 849
14 FORK LENGTH 551 551 551 551
15 FORK OFFSET 51 51 51 51
KONA Geometry
